ProtoViz Examples
API

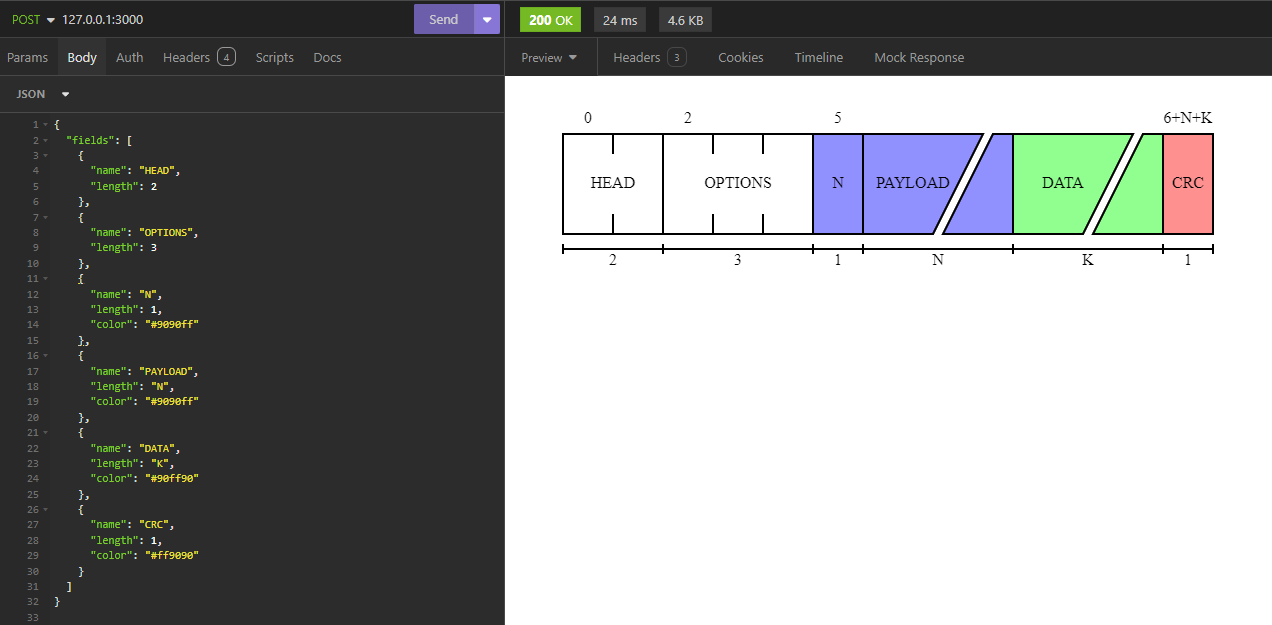

This example uses Axum to serve an API capable of converting JSON payloads into the ProtoViz SVG output.
You can run it with: cargo run --example api
JSON Format
style(optional):background_color(optional): Hex Color (RGB/RGBA) (Default: #ffffff)- Image background color
field_color(optional): Hex Color (RGB/RGBA) (Default: #ffffff)- Field background color
text_color(optional): Hex Color (RGB/RGBA) (Default: #000000)- Field text color (and stroke color)
subtitle_color(optional): Hex Color (RGB/RGBA) (Default: #000000)- Subtitle text color
unit_width(optional): Integer (Default: 50)- Width of a field unit (usually a byte or bit)
elements(optional):network_order(optional): Bool (Default: true)- Whether the protocol uses network ordering (big-endian)
field_position(optional): Bool (Default: true)- Whether to show the position number at the start of each field
field_length(optional): Bool (Default: true)- Whether to show the length of each field
fields(array of field objects):name: String- The name of the field
length: String or Integer- The length of the field, with a string value meaning a variable length with the given name
color(optional): Hex Color (RGB/RGBA) (Default: fill_color)- Fill color for this specific field
